Complex Uses Of Commercial V-Belts

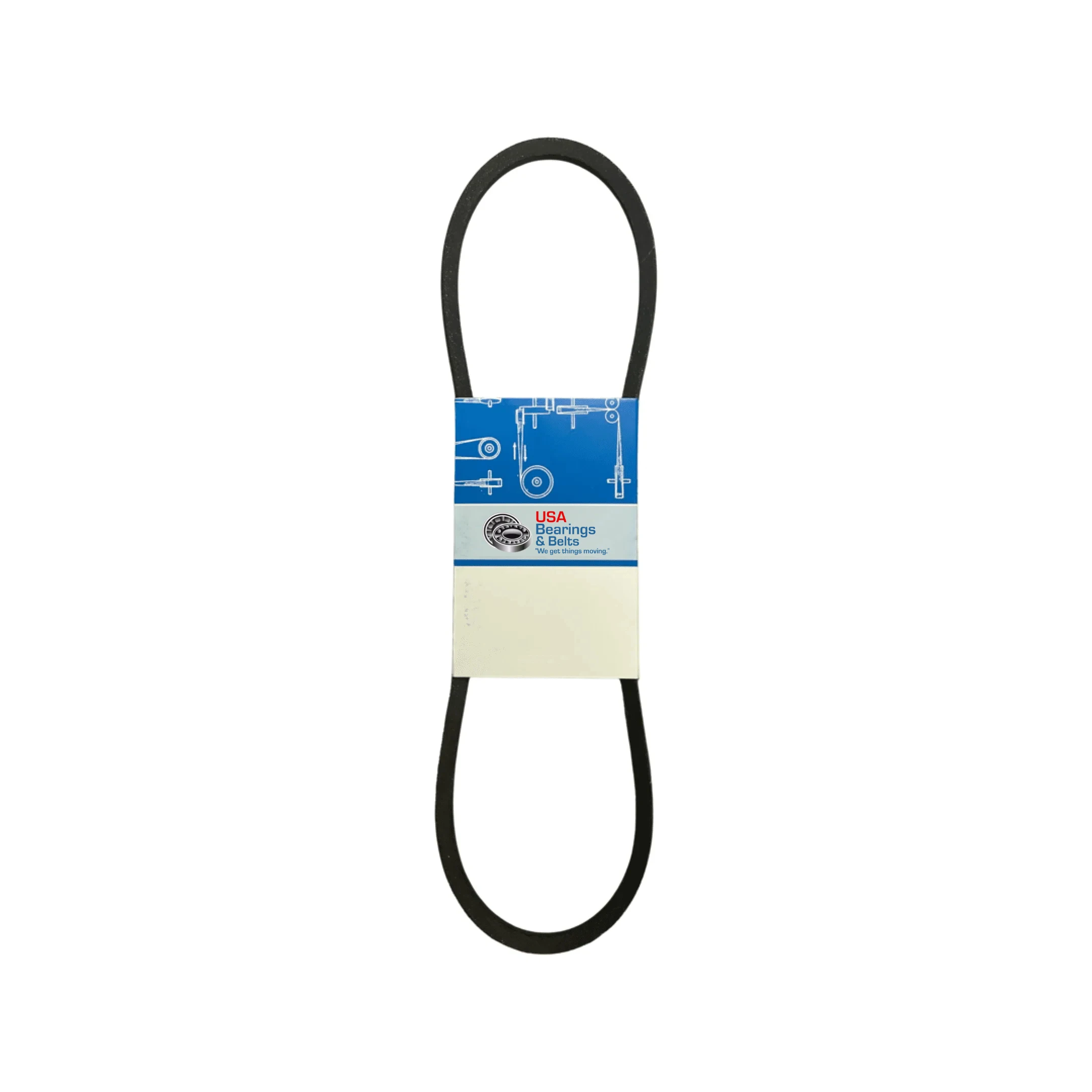

Commercial V Belts: An In-depth Look into A/4L, AX, B/5L, BX, SPZ, SPA, SPB, SPC, and Link V-Belts
The world of industrial machinery is a complex one, with numerous components working seamlessly together to ensure optimal performance. One such critical component is the Commercial V Belt. These belts, often overlooked, play an essential role in transmitting power from the engine to various parts of the machinery. They come in various types, including A/4L, AX, B/5L, BX, SPZ, SPA, SPB, SPC, and Link V-Belts, each with its unique characteristics and applications. This article will delve into these types, shedding light on their features, uses, and importance in industrial machinery.
A/4L and B/5L V-Belts
A/4L and B/5L belts, also known as fractional horsepower belts, are among the most commonly used V-belts in various industries. They are designed for light-duty applications, including home appliances, shop tools, and light industrial machinery. These belts are characterized by their unique shape that resembles the letter 'V,' which helps reduce slippage and alignment problems. The A/4L belt has a top width of 1/2 inch and a thickness of 5/16 inch, while the B/5L belt has a top width of 5/8 inch and a thickness of 3/8 inch. These dimensions allow the belts to fit perfectly into the sheave grooves, ensuring efficient power transmission.
AX and BX V-Belts
AX and BX V-belts are essentially the cogged versions of the A/4L and B/5L belts. The cogs, or notches, on these belts allow them to bend more easily around small sheave diameters, providing better flexibility and heat dissipation. This results in improved belt performance, longer belt life, and less maintenance. AX and BX belts are ideal for heavy-duty industrial applications where high power transmission is required.
